Preview environments

A preview turns a session from "read the diff" into "try the changed app." Use it when the result is easier to verify in a browser than in code review alone.

Previews are configured in .143/config.json under the top-level preview key. Commit that file to the base branch so sessions, branch previews, and API-triggered previews all read the same contract.

Set up the config

Start with the smallest config that can boot your app:

{
  "preview": {
    "name": "frontend",
    "command": ["npm", "run", "dev"],
    "cwd": "frontend",
    "port": 3000,
    "ready": { "http_path": "/", "timeout_seconds": 120 },
    "credentials": { "mode": "none" },
    "network": { "mode": "managed" }
  }
}

Key rules:

• command is argv, not a shell string. Use ["sh", "-c", "..."] only when you need shell features.
• cwd is relative to the repository root.
• port is the port inside the sandbox. 143 generates the public preview URL.
• ready.http_path should return a 2xx or 3xx response when the app is ready.
• Omit credentials, or set credentials: { "mode": "none" }, unless the app uses a legacy env-only credential set.
• network: { "mode": "managed" } keeps sandbox egress on the platform-managed policy.

Full-stack previews

Use services when the app needs more than one process. Services share the same sandbox filesystem and can call each other on localhost.

{
  "preview": {
    "name": "full-stack",
    "primary": "frontend",
    "services": {
      "frontend": {
        "command": ["npm", "run", "dev"],
        "cwd": "frontend",
        "port": 3000,
        "env": { "API_URL": "http://localhost:8080" },
        "ready": { "http_path": "/" }
      },
      "server": {
        "command": ["go", "run", "./cmd/server"],
        "port": 8080,
        "ready": { "http_path": "/healthz" }
      }
    },
    "credentials": { "mode": "none" },
    "network": { "mode": "managed" }
  }
}

If a repository has more than one app, use named configs with preview.configs and set preview.default. The preview config reference lists every field.

Keep previews current

When an agent changes code, a running dev server usually applies the update through its normal hot-reload path. Some changes need a refresh because the process, dependency tree, or runtime contract changed. 143 marks previews as needing refresh when changes touch files such as:

• dependency manifests or lockfiles
• .143/config.json or .143/preview-start.sh
• build config, environment config, or database migrations

Agents can run the same workflow from the sandbox:

143-tools preview create --session-id "$143_SESSION_ID" --wait
143-tools preview screenshot --session-id "$143_SESSION_ID" --path / --inline-base64 false
143-tools preview update --session-id "$143_SESSION_ID" --wait
143-tools preview multi_viewport --session-id "$143_SESSION_ID" --path /
143-tools preview console --session-id "$143_SESSION_ID" --level error

Screenshot and multi-viewport responses include an artifact.url served through the normal upload pipeline. Use --inline-base64 false when agents do not need PNG bytes in stdout.

Add dependencies

Use preview.install when services need dependencies before they boot. Keep source-dependent builds out of install; put them in the service command so they run against the latest workspace.

{
  "preview": {
    "install": {
      "command": ["npm", "ci", "--no-audit", "--no-fund"],
      "lockfiles": ["package-lock.json"],
      "clean_paths": ["node_modules"],
      "verify_paths": ["node_modules/.bin/next"],
      "timeout_seconds": 420
    },
    "name": "frontend",
    "command": ["npm", "run", "dev"],
    "port": 3000,
    "ready": { "http_path": "/" },
    "credentials": { "mode": "none" },
    "network": { "mode": "managed" }
  }
}

143 reruns install.command when declared lockfiles or config change, or when a declared verify_paths entry is missing. With verify_paths, a fresh workspace can skip install after restoring a matching dependency cache.

Do not cache source directories, secret files, .git, or .143/cache/preview-install. Use pinned lockfiles when possible; mutable tags such as latest can leave stale dependency artifacts.

Secrets and config

Do not put API keys, database URLs, tokens, or generated secret file contents in .143/config.json. Put non-secret values in preview.services.<service>.env; use preview.secrets for admin-managed values.

For new configs, reference a named secret bundle. The repo declares only the bundle name, service scope, and non-secret hints about expected env vars or generated files:

{
  "preview": {
    "primary": "frontend",
    "services": {
      "frontend": {
        "command": ["npm", "run", "dev"],
        "port": 3000,
        "ready": { "http_path": "/" }
      },
      "server": {
        "command": ["go", "run", "./cmd/server"],
        "port": 8080,
        "ready": { "http_path": "/healthz" }
      }
    },
    "secrets": {
      "bundle": "repo-dev",
      "services": ["frontend", "server"],
      "env": ["DATABASE_URL"],
      "files": ["development.conf.json"]
    },
    "network": { "mode": "managed" }
  }
}

An org admin creates the repo-dev bundle outside the repo. For generated JSON files, store the raw JSON document as the managed secret value and use a file output with format: "json". Use format: "raw" for PEM blocks or other non-JSON blobs.

The older preview.credentials shape is still accepted for an env-var-only managed credential set:

{
  "preview": {
    "credentials": {
      "mode": "managed_env",
      "credential_set": "repo-staging",
      "env": ["DATABASE_URL", "STRIPE_SECRET_KEY"],
      "inject_into": ["server"]
    },
    "network": {
      "mode": "managed",
      "destinations": ["staging_db"]
    }
  }
}

In both models, the config references admin-managed values by name and allowlists which outputs may be injected. Secret values are not committed to git.

Runtime environment

Every preview service receives a small set of platform environment variables:

These names are reserved. Preview configs and secret bundle env outputs that declare them fail validation.

Use previews

Use previews from:

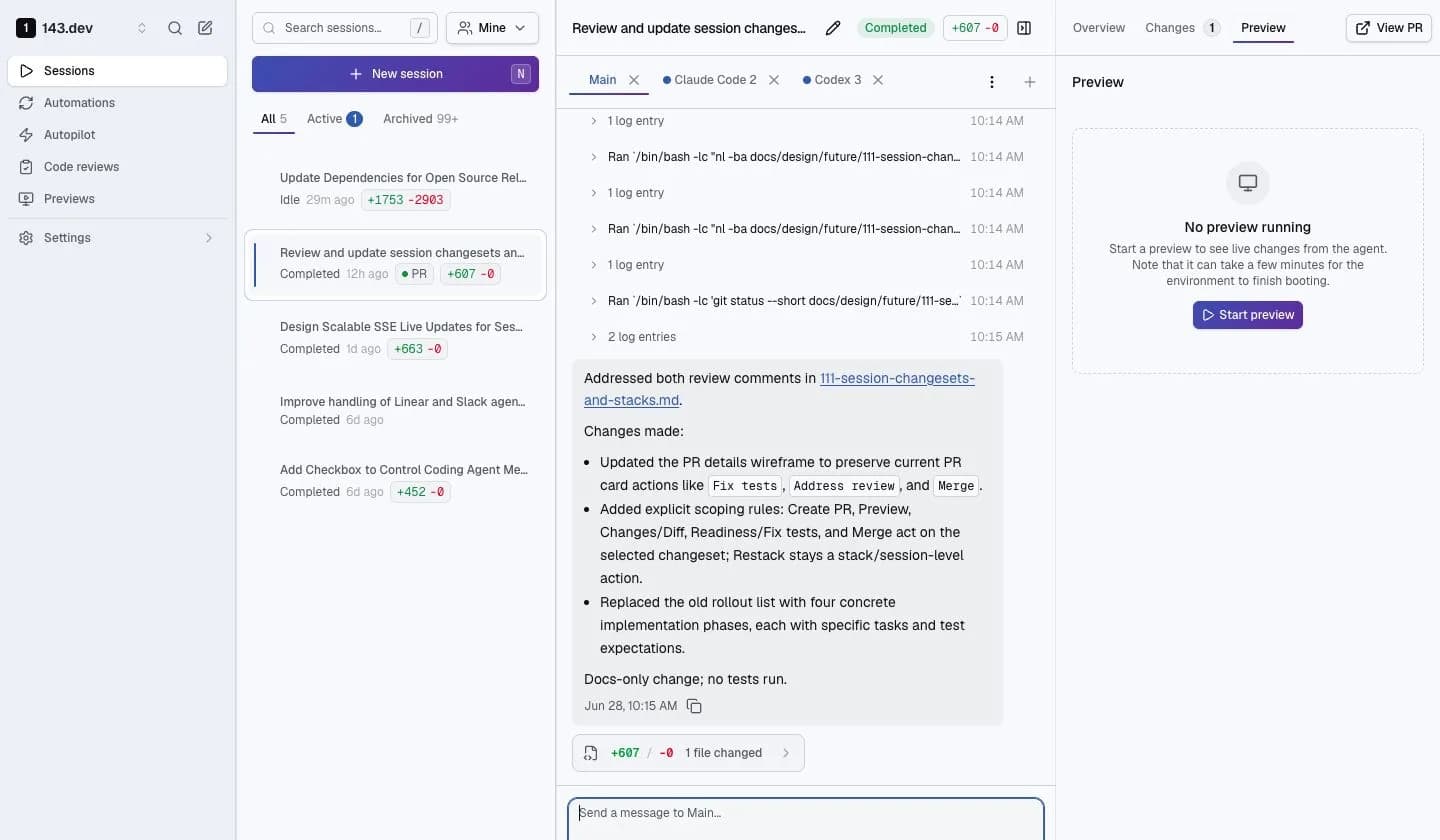

• A session: click Start Preview after the sandbox is available.
• A branch: go to Previews, choose repository and branch, then start a preview.
• CI or scripts: create a scoped preview API token, then call the preview API or 143 preview create.

Previews are most useful for UI changes, full-stack workflow changes, and review paths where the correct result is easier to see than infer from a diff.

Troubleshooting

References

• Repo config guide: where .143/config.json fits with bootstrap and validation.
• Preview config reference: every supported preview field and constraint.
• Review and ship: how previews fit into review workflows.
